Hikvision DS-D6022FN-B
Tags:

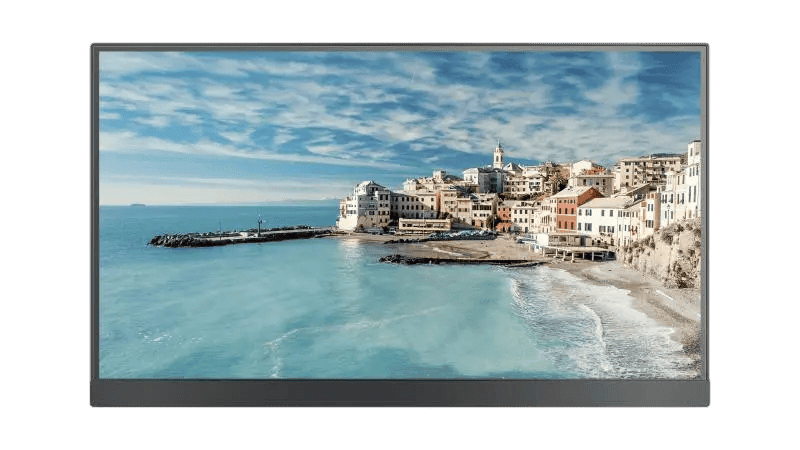

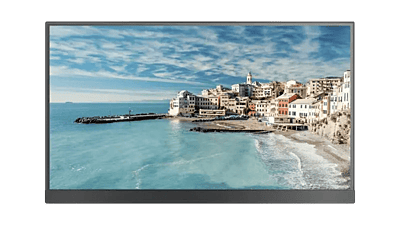

Hikvision DS-D6022FN-B | 22-inch Digital Signage by Dynamiccom
- Plastic shell appearance, slim frame, and all-in-one design.
- Exquisite image, industrial A+ panel, auto-coloring and image-enhancing engine.
- Variable materials, static and dynamic materials, including the pictures, audio, video, scrolling subtitle, PDF, webpages, live video, number calling, pop-up pictures, etc.
- Flexible program schedule, free schedules and district play of multiple materials and variable play modes: play by day, play by week, play by loop, custom play, etc.
- Centralized management, remotely control and manage one screen or more screens, such as timed startup/shutdown, quick startup/shutdown, brightness/volume timed adjustment, and screenshot preview, remotely release programs and updates local (USB) programs.
- Organization permission, 5-level organization is available for managing materials, programs, terminals, and users, and support creating custom users, allocating permission for users according to user level, and permission templates.
- Multiple security safeguards, 3-level check of materials, programs and schedules to prevent mistake release, encryption of data in storage and transmission to prevent data tampering, and with no default password, users can activate and set initial password to guarantee the password safety.
The Hikvision DS-D6022FN-B 22 inch Digital Signage by DynamiCom offers a comprehensive solution for digital display needs. With its sleek design, advanced image quality, and versatile content support, this signage system stands out for its flexibility and ease of use.
Free Collection available.For delivery in any of the United Emirates or internationally, please request a quote from info@dynamiccom.co.za
AED948.00
Choose Quantity
Product Details
Display
- Viewing Angle 178°(H)/178°(V)
- Contrast Ratio 3000:1
- Screen Size 21.5 inch
- Active Display Area 478.656 mm(H) × 260.28 mm (V)
- Backlight ELED
- Pixel Pitch 0.24795 (H) mm × 0.24795 (V) mm
- Resolution 1920 × 1080@60 Hz
- Brightness 250 cd/m²
- Color Depth 8 bit, 16.7 M
- Response Time 6.5 ms
- Color Gamut 72% NTSC
- Reliability 7 × 24 h
- Refresh Rate 60 Hz
Built-In System
- Operation System Android 8.1.0
- CPU Cortex-A17, 4-core, main frequency 1.6 GHZ
- Memory 2 GB
- Built-In Storage 16 GB
Interface
- Video & Audio Input AUDIO IN × 1
- Video & Audio Output AUDIO OUT × 1
- Network Interface LAN × 1, Wi-Fi
- Data Transmission Interface USB 2.0 × 2, TF Card × 1, BT4.0 × 2, Wi-Fi
Power
- Standby Consumption ≤ 10 W
- Input Voltage 100 to 240 VAC, 50/60 ± 3 Hz
- Power Consumption ≤ 40 W
- Working Environment
- Working Temperature 0 ℃ to 40 ℃ (32 °F to 104 °F)
- Working Humidity 20% to 90% RH
- Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
- Storage Humidity 5% to 90% RH
General
- Material Type
- DAT, MPG, VOB, TS, AVI, MKV, MP4, MOV, 3GP, TS, FLV, WEBM, ASF, MP1,
- MP2, MP3, WMA, WAV, OGG, OGA, FLAC, ACC, M4A, XMF, MXMF, RTTTL, RTX,
- OTA, IMY, JPG, JPEG, BMP, GIF, PNG
- Mounting Type Wall-Mounted
- Product Dimensions (W × H × D)516.75 (W) × 320.03 (H) × 46.55 (D) mm (without wall-mounted backboard) (20.34'' × 12.60'' × 1.83'')516.75 (W) × 320.03 (H) × 53.55 (D) mm (with wall-mounted backboard) (20.34'' × 12.60'' × 2.11'')
- Package Dimensions (W × H × D) 593 (W) × 434 (H) × 157 (D) mm (23.35'' × 17.09'' × 6.18'')
- Net Weight 3.03 Kg (6.68 lb)
- Gross Weight 4.63 Kg (10.21 lb)
- Packing List Wall-mounted backboard × 1, screws M3 × 6, power cord × 1, remote control × 1, battery × 2, screw package × 1
Internal Function
- Loudspeaker 2 × built-in speaker, 8 Ω 5 W
