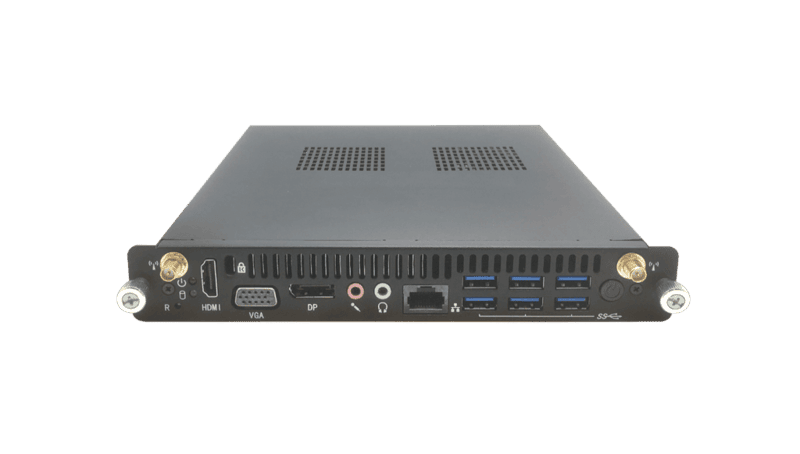

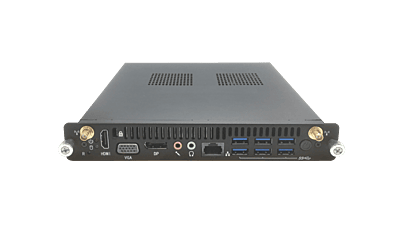

Hikvision DS-D5AC9C5-8S2 | OPS Module - Windows Computer
Tags:
The Hikvision DS-D5AC9C5-8S2 is a powerful and versatile OPS module designed to transform your
interactive whiteboard display into a high-performance Windows computer. With its cutting-edge features and
advanced capabilities, this module offers seamless integration and enhanced functionality for your digital
signage solutions.
Key Features:
●Intel UHD Graphic, support H.265 and 4K resolution
●Support M.2 nvme system disk quick start
●Support 3 USB 3.0 ports, 3 USB2.0 ports, 1 HDMI port, 1 DP interface，1 Type-C port
●Support dual channel memory
●Support Wi-Fi IEEE 802.11 a/b/g/n/ac
Ideal for digital signage, video conferencing, and various multimedia applications, the Hikvision DS-
D5AC9C5-8S2 OPS Module offers a powerful and reliable computing solution tailored to meet the
demands of modern display environments.
i5 PDF
i7 PDF
Free Collection available.
For delivery in the UAE or internationally, please request a quote from [email protected]
- Select Processor
- Quantity
Product Details
- ProcessorIntel® Core i5 9400H
- CPU Clock Speed2.5GHz
- Platform ArchitectureIntel® Coffeelake
- PCHIntel® Z370
- GraphicsIntel® UHD Graphics 630
- Memory8G
- Storage256G
- NICIntegrated 10/100/1000M Adaption
- Cooling SystemSingle Brass & Single Fan
- Network InterfaceRJ45×1
- Data Transmission InterfaceBluetooth 4.2
- Antenna2
- Video OutputHDMIx1, DPx1
- Input Voltage12V-19V DC
- Max. Consumption60W
- Standby Consumption0.5W
- Storage Temperature-20°C - 60°C
- Storage Humidity10%-90%
- Working Temperature0°C - 40°C
- Working Humidity10%-90%
- ColorBlack
- Product Dimensions (W × H × D)180×195×30mm
- Net WeightAbout 1.24kg
Built-In System
Interface
Power
Working Environment
General
