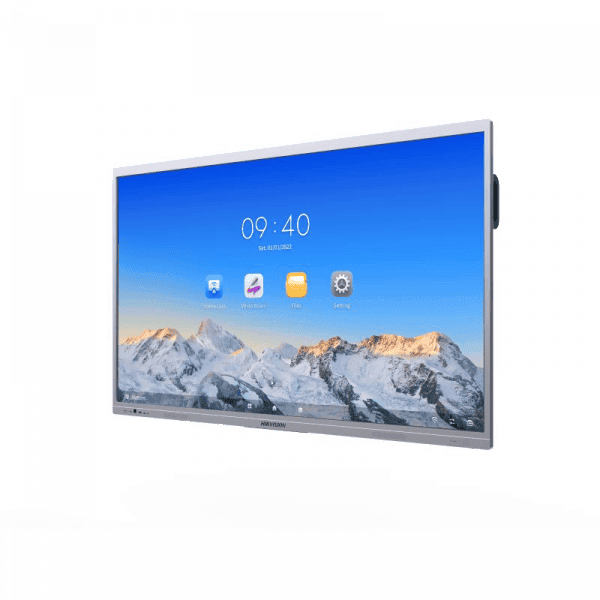

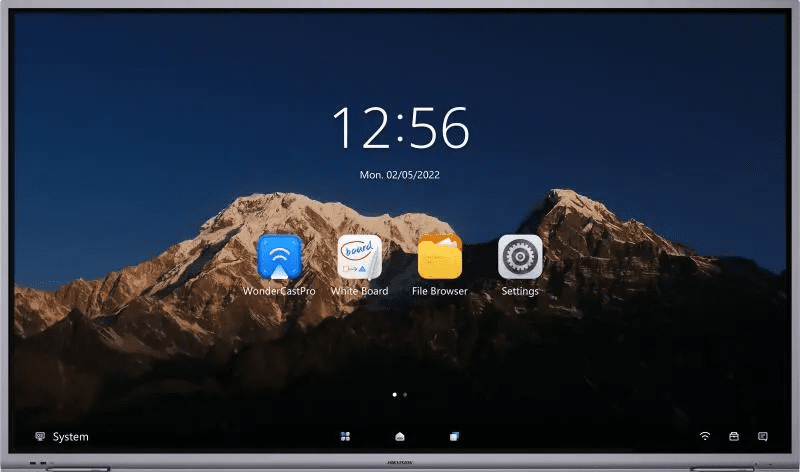

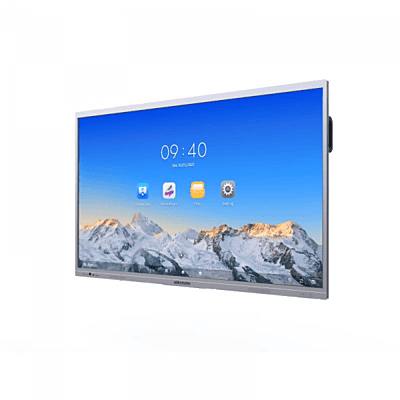

Hikvision DS-D5 Interactive LED Displays
Tags:
Hikvision 4K Interactive Flat Panels | At an economical cost point!
- Ultra HD display with up to 3840 × 2160 resolution of input signal available.
- 20px ultra-fine writing, and 2 mm diameter recognisable with the precision of 1 mm.
- Built-in Wi-Fi with Miracast function without any cable connection.
- Built-in interactive whiteboard system allows annotating and sharing by QR code.
- Looping-out display available
- Various audio and video interfaces for device access.
- Built-in network switch chip saves a network switch.
- Built-in Android system provides kinds of applications.
- Compatible with OPS/OPS-C devices, realising smooth switch between built-in systems.
- Ultra-thin design with aluminum profile frame.
- Select Screen Size
- Quantity



Product Details
- Display
- Screen LED Backlight
- BacklightDLED
- Pixel Pitch0.124 (H) × 0.372 (V) mm
- Resolution3840 × 2160@60 Hz
- Brightness350 cd/m²
- Color Depth10 bit
- Contrast Ratio4000 : 1 (Typ.)
- Response Time6 ms
- Color Gamut90% NTSC (CIE1931) (Typ.)
- Refresh Rate60 Hz
- Viewing Angle178° (H) / 178° (V)
- Built-In System
- Operation SystemAndroid 11
- ProcessorA72*2 + A53*4, 1.8 GHz
- Memory4 GB
- Built-In Storage64 GB
- NICBuilt-in 1000 Mbps NIC, supporting routing; IEEE 802.11 a/b/g/n/ac with 2 × 2 MIMO, supporting both 2.4 GHz and 5GHz bands
- Touch
- TypeInfrared touch screen
- GlassAG smooth glass
- Touch PointMax 45 point multi-touch
- Touch Response Time< 10 ms
- Touch Precision± 1 mm (≥ 90% touching area)
- Internal Function
- LoudspeakerBuilt-in 2 × 16 W loudspeaker
- BluetoothBuilt-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.0 and previous version
- Interface
- Video & Audio InputHDMI IN × 2, MAX 4K @30 Hz, LINE IN × 1
- Video & Audio OutputHDMI OUT(HDMI 2.0) × 1, MAX 4K @60 Hz, LINE OUT × 1
- Control InterfaceRS-232 × 1, Touch-USB × 1
- Network InterfaceRJ45 (1000 Mbps port) × 2
- Data Transmission InterfaceUSB-C × 1, USB-A × 2 on front panel, USB-A × 2 on rear panel
- Power
- Power Consumption≤ 320 W (full load)
- Standby Consumption0.5 W
- Working Environment
- Working Temperature0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
- Working Humidity10% to 90% RH
- General
- Power100 to 240 V, AC, 50/60 Hz
- Lifespan50000 hours
